Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

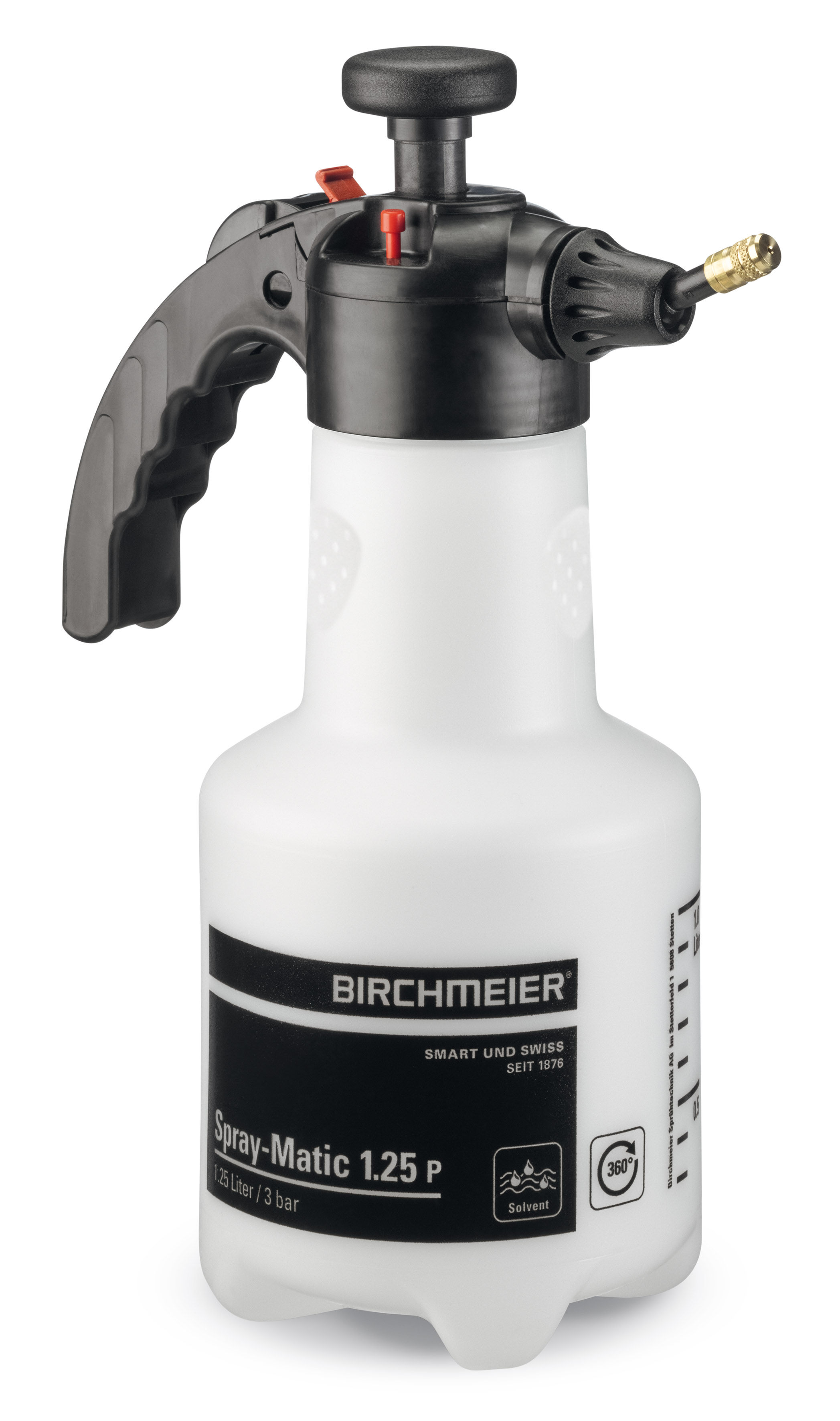

Spray-Matic 1.25 P / 360°

Article number: 11963201 / EAN: 7611034130910
Handsprühgerät Spray-Matic 1.25 P / 360° von Birchmeier

New swing with 360° function. High quality 360° hand compression sprayer with brass nozzle for a general and industrial use.

  • Spraying in any position (360°)
  • Impact resistant polyethylene tank with 1.25 l filling capacity, transparent (tank volume 1.5 l)
  • Recessed grips
  • Chemical resistant Viton gaskets
  • Safety valve and fixable push-button
  • Ergonomic and efficient hand pump up to 3 bar operating pressure
  • Large filling opening
  • Adjustable and inclinable brass nozzle
Read more

Compare Add to wish list
Technical data
Chemical resistanceNot suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationWater
Antirust
Impregnation
Mineraloil based solvent
Formwork release oil / Release agents
Form of applicationLiquid
Filling capacity (Volume, l)1.25
Max. working pressure (bar)3
Nozzle typeAdjustable nozzle
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic
Fitting connectors
Stress classVery heavy duty
Length (mm)125
Width (mm)215
Height (mm)305
Weight (kg)0.43
Device typeCompression sprayer plastic
Special functionSpray function 360° (spraying in any position)Gaskets VitonPolypropylene
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Adjustable nozzle brass Adjustable nozzle brass Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range – 3 barTo the nozzle
Adjustable nozzle compl. brass nickel (Accessories)Adjustable nozzle compl. brass nickel (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range – barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle assy. brass (TP 8002 Ms)Fanjet nozzle assy. brass (TP 8002 Ms)Technical parametersSpray patternPressure range – barTo the nozzle
Extension tube 40 cm bendable, soft (Accessories)Extension tube 40 cm bendable, soft (Accessories)Technical parametersSpray patternPressure range – barTo the nozzle
Extension tube 80 cm bendable, soft (Accessories)Extension tube 80 cm bendable, soft (Accessories)Technical parametersSpray patternPressure range – barTo the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
DownloadsAccessories and spare parts
Videos

No videos available.

DownloadsLeafletThe correct colour for your application
ManualsOperating manual
