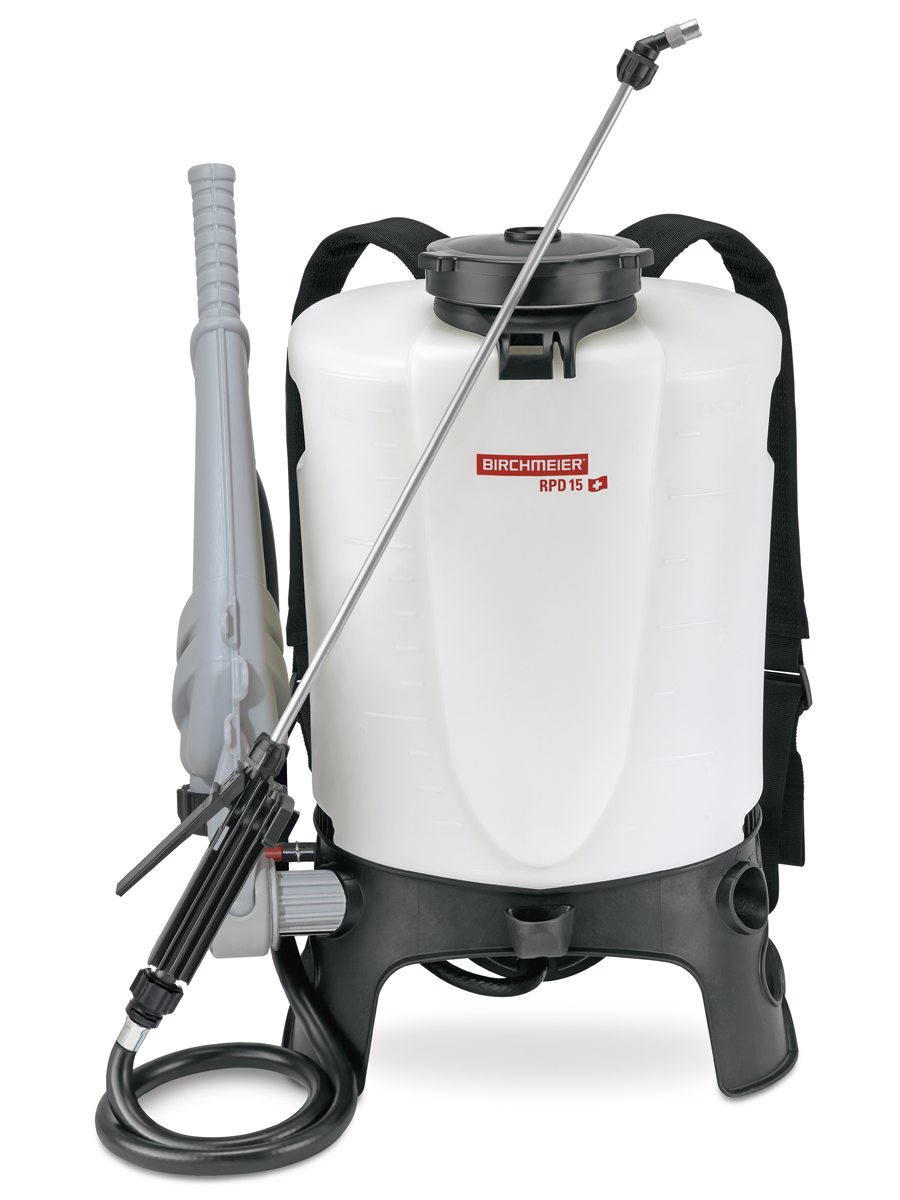

RPD 15 PB1 (plug-in)

Article number: 11952501 / EAN: 7611034010144
RPD 15 PB1 (plug-in)

The backpack sprayer – easy, handy, ergonomic

Real work comfort

  • Re-defined ergonomics
  • Pump can be folded up
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Can be used left or right



All in the lever

  • Non-drip piston pump
  • Integrated air chamber
  • Hose outlet
  • Holder for spray lance



Proven Birchmeier technology

  • Externally mounted pump
  • Tank outlet via suction system
  • New designed click belt system
  • Adjustable nozzle
  • Top quality mountings
  • Large filling opening with strainer
Read more

Technical data
Chemical resistanceFor use with diluted acids, weak alkalis, hypochlochrites.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationWater
Antirust
Impregnation
Acids
Mineraloil based solvent
Formwork release oil / Release agents
Dissolution of wallpaper
Disinfection
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)5
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic, stainless steel
Material Device/containerPlastic
Material FittingsPlastic, stainless steel
Fitting connectorscompression fitting
Stress classStandard duty
Length (mm)220
Width (mm)400
Height (mm)610
Weight (kg)3.5
Device typeBackpack sprayer
Special functionGaskets VitonSuitable for disinfection
Nozzles data
Adjustable nozzle 1.3 mm, PP VitonAdjustable nozzle 1.3 mm, PP VitonTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Operating manualsOperating manual
