Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

Rex Profi

Article number: 30407197 / EAN: 7611034130064
Rex Profi
  • Kolbenpumpen-Sprüher Rex Profi von Birchmeier für Baustellen, Straßenbau

The robust and powerful piston pump hand sprayer with a high volume spray

  • Robust polyethylene tank, transparent white, with 1.5 litres volume
  • Chemical resistant gaskets
  • Powerful brass piston pump (piston pressure up to 20 bars)
  • Precision brass nozzle 1.2 mm
  • Large filling opening
  • Tank with quick coupling and recessed grip
  • Good stability due to large tank diameter
  • Robust construction
  • Adjustable nozzle 1.3 mm as option available
Read more

Technical data
Chemical resistanceNot suitable for acid-based herbicides (for example acetic acid), peroxides, acids, alkalines and solvents.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.For use with mineral oil based and vegetable solvents and oils.
ApplicationDiesel
Antirust
Impregnation
Mineraloil based solvent

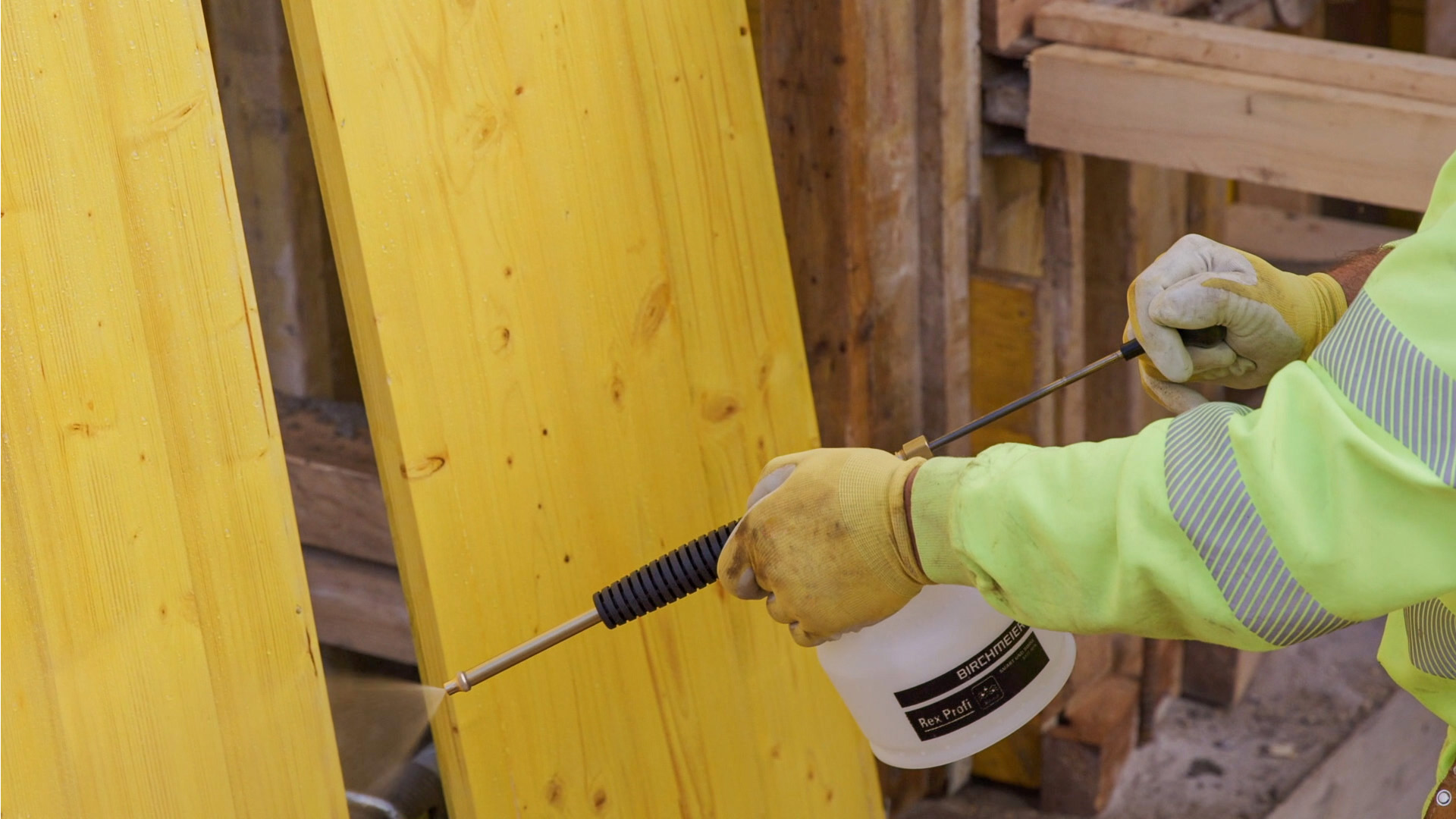

Formwork release oil / Release agents
Form of applicationLiquid
Filling capacity (Volume, l)1.7
Max. working pressure (bar)20
Nozzle typeMist nozzle with spiral insert
Spray patternHollow cone nozzle (for smaller shrubs and plants)
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsBrass
Fitting connectors
Stress classVery heavy duty
Length (mm)415
Width (mm)150
Height (mm)190
Weight (kg)0.8
Device typeHand sprayer
Special functionGaskets Viton
Nozzles data
Mist nozzle with spiral insertMist nozzle with spiral insertTechnical parametersSpray patternPressure range – barTo the nozzle
Adjustable nozzle 1.3 mm M8x1 (Accessories)Adjustable nozzle 1.3 mm M8x1 (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Videos

No videos available.

DownloadsLeafletThe correct colour for your application
